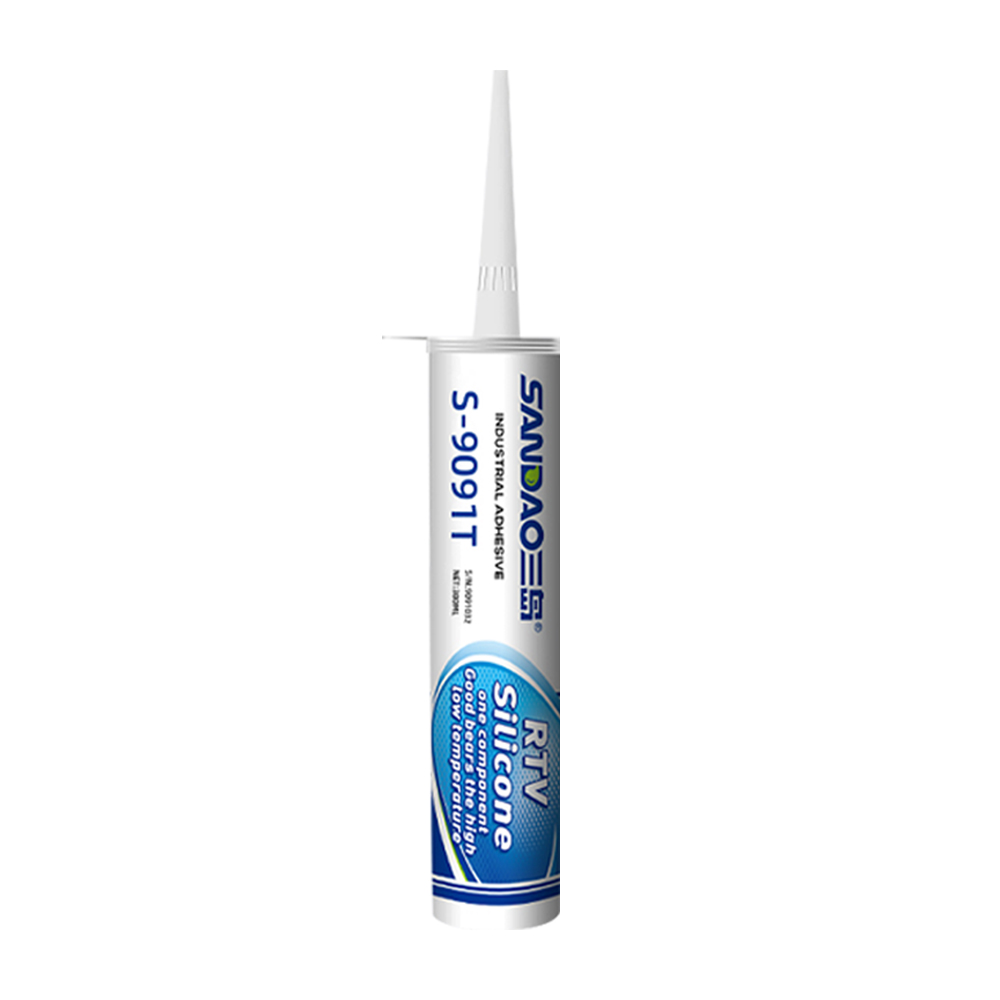

S-9091T Silicone sealant for rubber
◆Product Model: S-9091T single component room temperature vulcanized silicone rubber
◆Features: This product is a single component fast drying environmental protection adhesive sealant, translucent neutral, no pungent odor, no solvent, no corrosion, no pollution. Fast curing in contact with air at normal temperature, good toughness after curing, high tensile strength, high and low temperature resistance -60 to 200 degrees, aging resistance, solvent resistance, good sealing, good electrical insulation.
◆Environmental requirements: comply with RoHS directive and related environmental requirements
◆Citation standard :HG/T 3947-2007 single component RT-vulcanized silicone adhesive/sealant
■Apply
Mainly widely used in silicone strips, silicone plates, silicone rubber O-rings and other silicone products docking, splicing or silicone products and metal, but also suitable for other engineering plastics (ABS/PC/PA/PAT/PMMA, etc.) self-adhesive or mutual adhesive, or these engineering plastics with metal, glass and other bonding.
■Electrical/mechanical properties (At TA=25℃)
|
argument |
symbol |
Test standard |
Performance index |
|
hardness shore A |
HA |
GB/T 531.1 |
20-30 |
|
elongation% |
δ |
GB/T 528 |
≥250 |
|
Tensile strengthMPa |
Rm |
GB/T 528 |
≥2.5 |
|
Shear strengthMPa |
σc |
GB/T 7124 |
≥1.2 |
|
Dielectric strengthkV/mm |
eo |
GB/T 1695 |
≥20 |
|
Dielectric constant1.0MHz |
ε |
GB/T 1693 |
2.5 |
|
Volume resistivityΩ·cm |
ρ |
GB/T 1692 |
≥1.0×1014 |
■Limit parameter (AtTA =25℃)
|
argument |
symbol |
Numerical value |
unit |
|
Surface drying time |
TFT |
3～10 |
min |
|
Curing time |
TFT |
24 |
H |
|
Specific gravity |
s.g. |
1.0±0.1 |
g/cm³ |
|
Operating temperature |
TOPR |
-60°C To +260°C |
|
|
Storage temperature |
TSTG |
10°C To +25°C |
|
■Usage and precautions
※The adhesive sealing surface should be clean, the top of the nozzle should be cut off and sealed according to the dosage, put it on the packaging mouth, apply it to the construction surface (thickness should not exceed 6mm), and put it in the air. The surface of this product can lose its adhesive shape (surface dry) at room temperature for 3-10 minutes, and it will be completely cured after 24 hours. The heating of this product can not significantly change its curing speed.
※Unused adhesive material should be sealed and stored. When used again, if there is a little crust at the seal, it can be removed without affecting normal use. Glue in the storage process, the nozzle may also appear a small amount of curing phenomenon, can be removed after normal use, does not affect the performance of the product. The storage period is 6 months (25℃).
※This product is non-dangerous goods, but do not import and eye.
※This product cannot be mixed with other types of colloids!
