SD109 Ultra-low smell instant glue
■ description ◆ Product model: SD109 ultra-low smell instant glue
◆ Ultra-low smell, ultra-low whitening, low viscosity of the instant glue.
■ use: Suitable for: metal, plastic, leather, makeup industry, dental equipment, medical tools, they can join many types of materials, including metal, plastic, elastomer, wood, stone, ceramic, leather, fabric, or any combination of these materials.
■ the key technical indexes (At TA=25℃)
|
parameter |
parameter |
performance index |
|
dynamic viscosity mPa·s |
HG/T 2363-1992 |
1300～2000 |
|
curing time s |
GB/T 7123.1-2015 |
35 |
|
shear strength N/mm2 |
GB/T 7124-2008 |
≥18 |
|
Fill the gap mm |
/ |
≤15 |
■Curing speed on different materials
The curing speed depends on the bonded substrate, and the table below indicates the fixation time of the different substrates at 22℃, 50% relative humidity. The following tests are the time required for the specimen to reach 0.1MPa according to HG / T 2492-2005.
|
The sticky material |
Fixed time (sec) |
|
Steel (skim) |
10-35 |
|
Merlon |
20-60 |
|
aluminium |
5-15 |
|
bakelite |
5-25 |
|
chloroprene rubber |
<5 |
|
acrylonitrile-butadiene rubber |
<5 |
|
ABS/PVC |
10-35 |

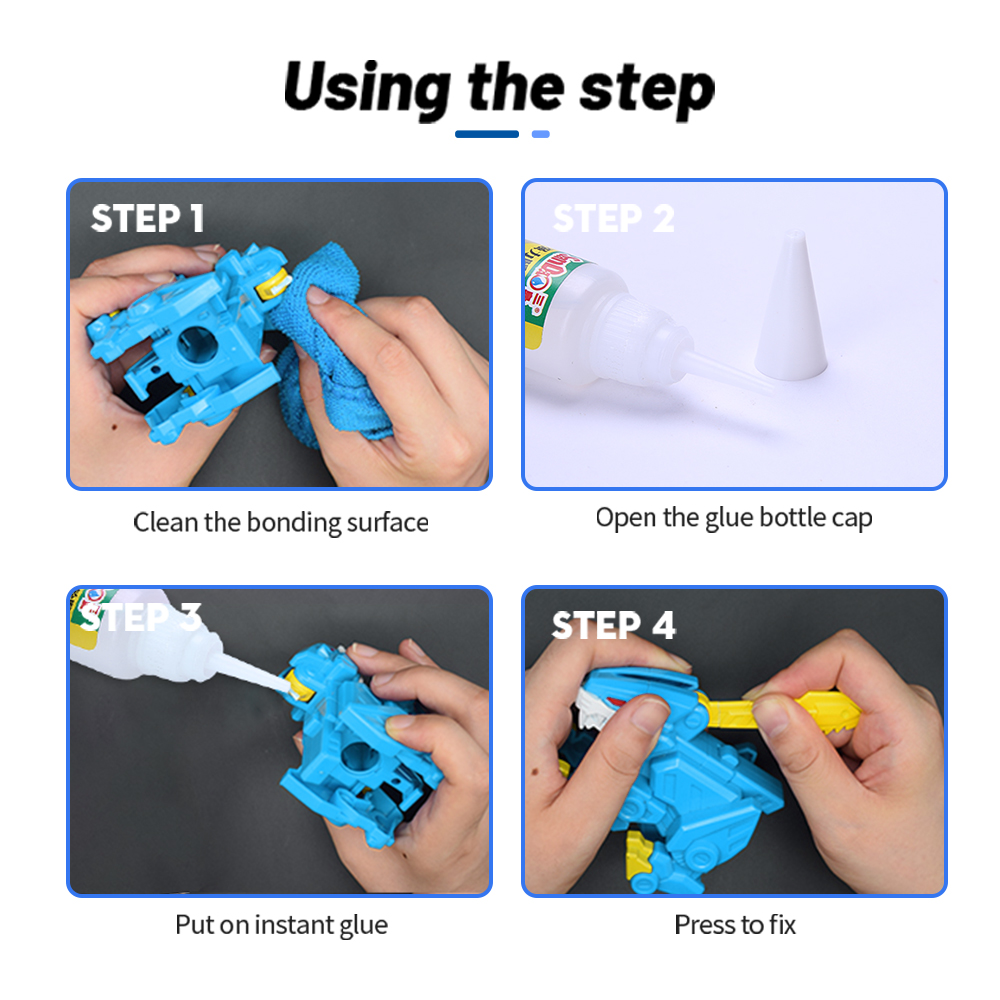

■ use ① Use dry cloth or sandpaper to remove the surface of dust, oil agent, steel rust, and then wipe with acetone or trichloroethylene, to clean the surface.
② Open the front cover, and flick the tip part with the finger, so that there is no residual liquid, and then poke the hole with a needle.
③ A small drop of agent in the surface, immediately proceed, and keep until hardening, hardening of the number of seconds to several points; about 30 minutes can be connected to the practical strength, and the maximum strength can be reached after 24 hours.
④ After use, wipe the container tip and cover the lid.
